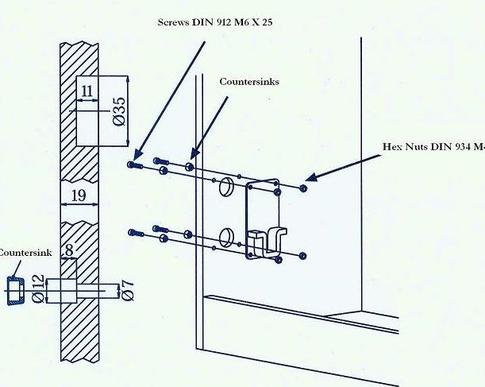

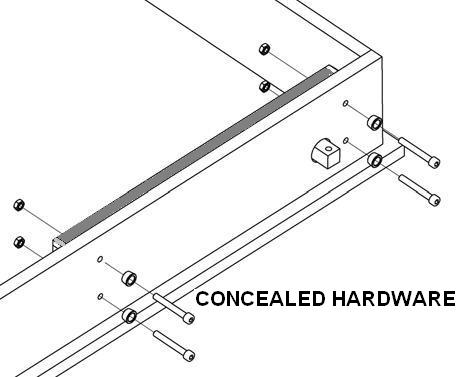

Countersink Bushings must be inserted into the wood cabinet sides for added strength at stress points when the mechanism is under tension. The M6 socket head machine screws are then inserted through the countersink bushings and the mount plates threaded into nuts that are then firmly tightened. (7.8FT.LB. Dry)

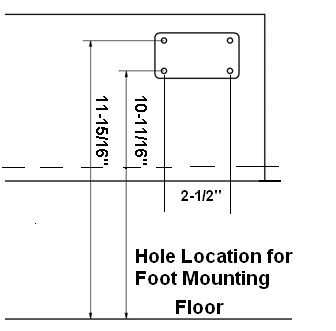

Hole Location Detail


Technical Support:
techhelp@selbyhardware.com
North America (602) 920 4337
7AM to 7PM Central Time

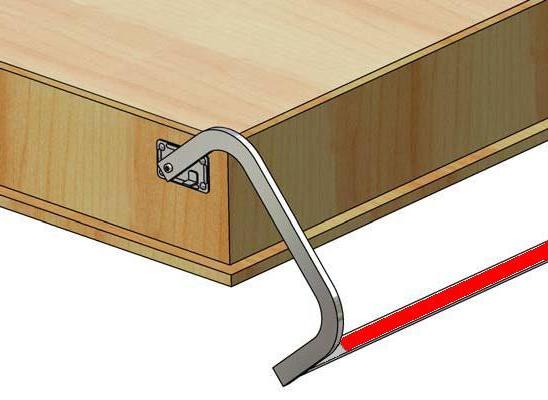

Cross Bar Provided by Fabricator of same wood species as door face
